FLUKE TEST LEADS

DWTOOL.COM >> >> FLUKE TEST LEADS

FLUKE TEST LEADS

FLUKE TEST LEADS
FLUKE TEST LEADS - Image 3
FLUKE TEST LEADS - Image 4
FLUKE TEST LEADS - Image 5
FLUKE TEST LEADS - Image 6
FLUKE TEST LEADS - Image 7
FLUKE TEST LEADS - Image 8
FLUKE TEST LEADS - Image 9

Price range: $22.89 through $76.31

SKU: FLUKE TEST LEADS Categories: ,

Description

CALAUTOTOOL

Fluke RPM80 Inductive Pick-Up/External Trigger

 – Provides RPM readings.

– Best used with Fluke 88 V/A Kit

FLUKE TL28A – Automotive Test Leads Set

Large jaws, long leads and a piercing needle inside the jaws. Solid, spring-loaded copper clips with a wide 12.7 mm (.50″) jaw opening and serrated teeth. Large piercing needle for penetrating larger gauge wires located inside the jaws. 1.5 m (60″), silicone-insulated leads, useable from -80 °C to +70 °C (-112 °F to +158 °F). Rated for 30 V, 10 A. One red, one black.

FLUKE TL26A – 60 in. 5 way test leads set

60″ (1.5m), silicone-insulated leads, useable from -80°C to +70°C (-112°F to +158°F). Rated for 30V, 8A. One red, one black.

5 ways to connect:

  1. U-shaped nose for blade-shaped terminals
  2. Notched jaw for gripping screw heads, bare wire or terminals
  3. Serrated teeth for gripping threaded or wire-wrapped terminals
  4. Cluster of sharp needles for piercing small gauge (#22-#28 AWG) wires
  5. Large piercing needle for penetrating larger gauge wires

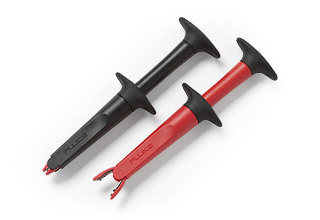

Fluke AC220 SureGripTM Alligator Clips

SureGrip™ accessories are designed to improve steadiness in slippery hands. Rubber overmolded surfaces and finger-hugging curves give the user a comfortable, reliable grip on the accessory so they can focus on making an accurate measurement.

  • One pair (red, black) of small, insulated, nickel plated jaws
  • Blunt tip grabs round screw heads up to 9.5 mm
  • Recommended for use with TL222 and TL224 test leads
  • CAT IV 600 V, CAT III 1000 V, 10 A rating. UL listed

Fluke TP88 Rigid Back Probe Pins

Better than a test probe alone – these two inch long rigid back probe pins easily pass between the weather pack seal and wire. A sharp point ensures good contact to the electrical connector, and the pin’s insulation protects it from shorting to other wires.

  • Slides onto test probes measuring 2 mm (0.08 inches)
  • Tested to 60 V DC

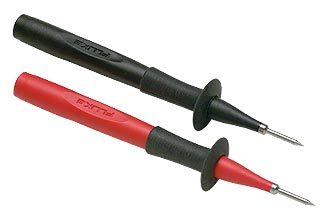

    • Fluke TP220 SureGripTM Industrial Test Probes

    SureGrip™ accessories are designed to improve steadiness in slippery hands. Rubber overmolded surfaces and finger-hugging curves give the user a comfortable, reliable grip on the accessory so they can focus on making an accurate measurement.

  • One pair of industrial test probes (red, black)
  • Sharp, 12 mm stainless steel tip provides reliable contact
  • Flexible finger barrier improves grip
  • Recommended for use with TL222 and TL224 test leads
  • CAT II 1000 V, 10 A rating

    • Fluke TL222 SureGripTM Silicone Insulated Test Leads

  • DMM test leads (red, black) with safety shrouded, standard diameter banana plugs
  • Right angle connector on both ends
  • Reinforced strain relief
  • 1.5 meter silicone-insulated wire resists heat and cold
  • CAT IV 600 V, CAT III 1000 V, 10 A rating. UL listed


    • Additional information

    Weight 2.00 lbs
    Dimensions 12.00 × 12.00 × 5.00 in
