SpeedPoint® tip for fast starts.*
• Geometry of single-flute cutting edge drills true,
round holes and provides maximum step control.

 Titanium Nitride coating resists heat and friction, extending the
cutting edge life up to six times longer than other high speed
steel step drill bits.
• SpeedPoint® tip for fast starts.*

#	Description	# of Hole	Hex Shank	Carded

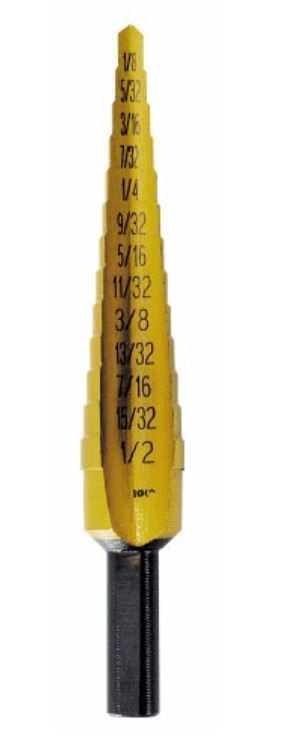

#1	1/8″ – 1/2″ (1/32″ steps)		1/4″	10231

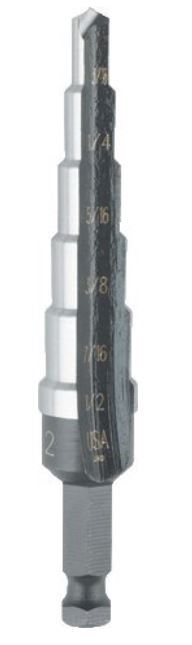

#2	3/16″ – 1/2″ (1/16″ steps)	13	1/4″	10232

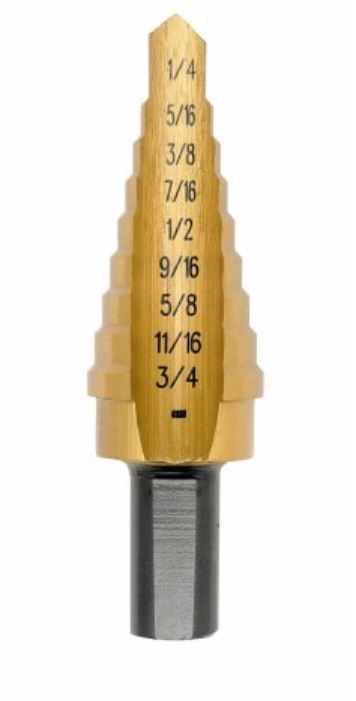

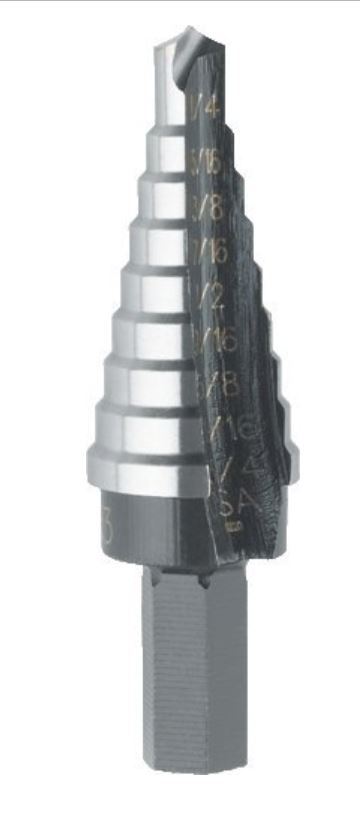

#3	1/4″ – 3/4″ (1/16″ steps)	6	3/8″	10233

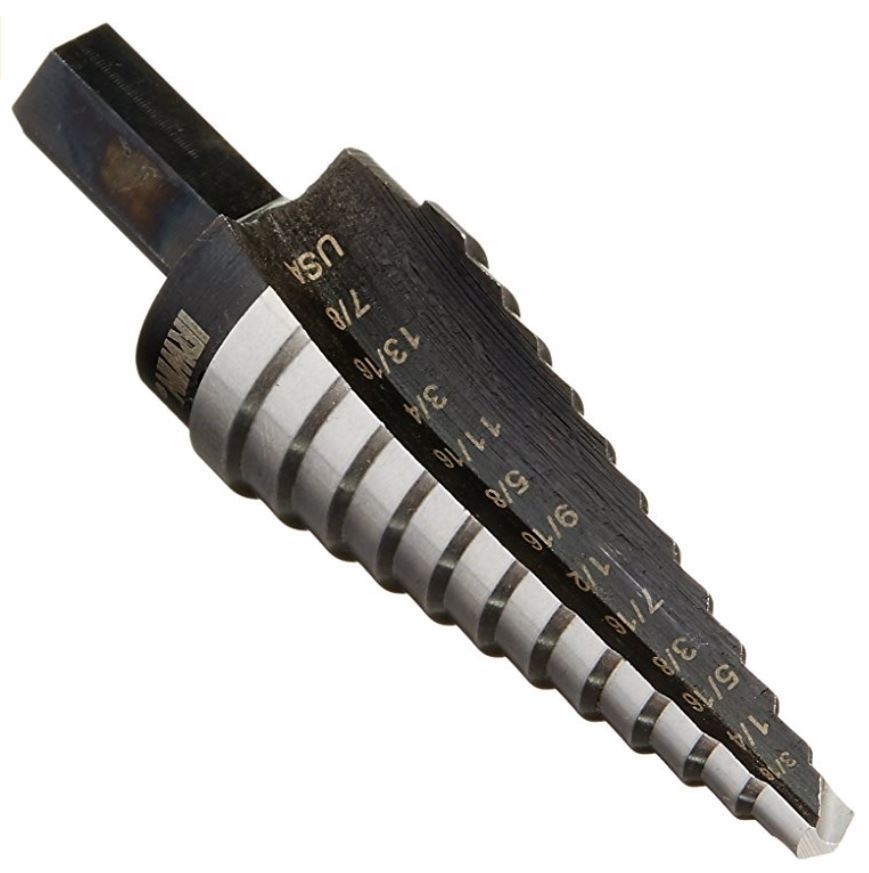

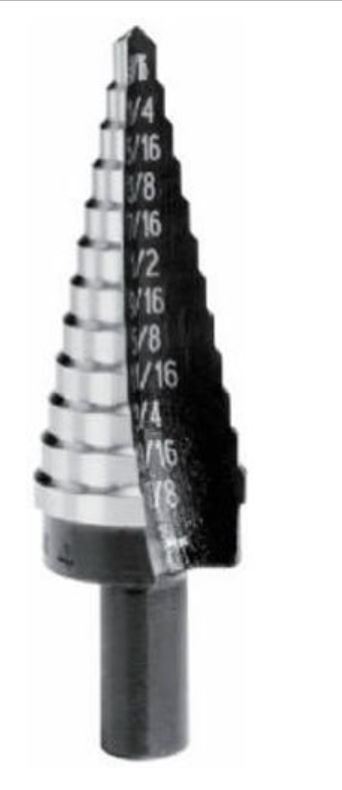

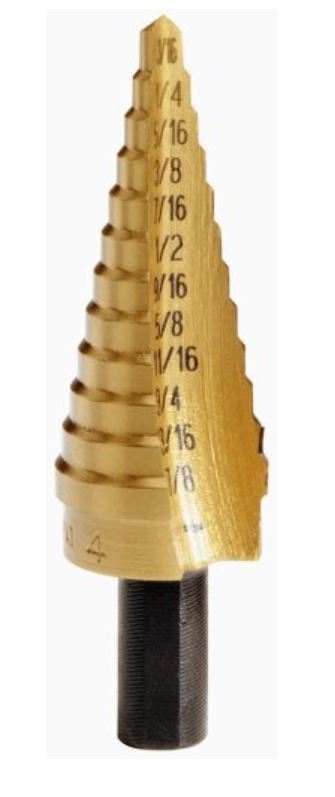

#4	3/16″ – 7/8″ (1/16″ steps)	9	3/8″	10234

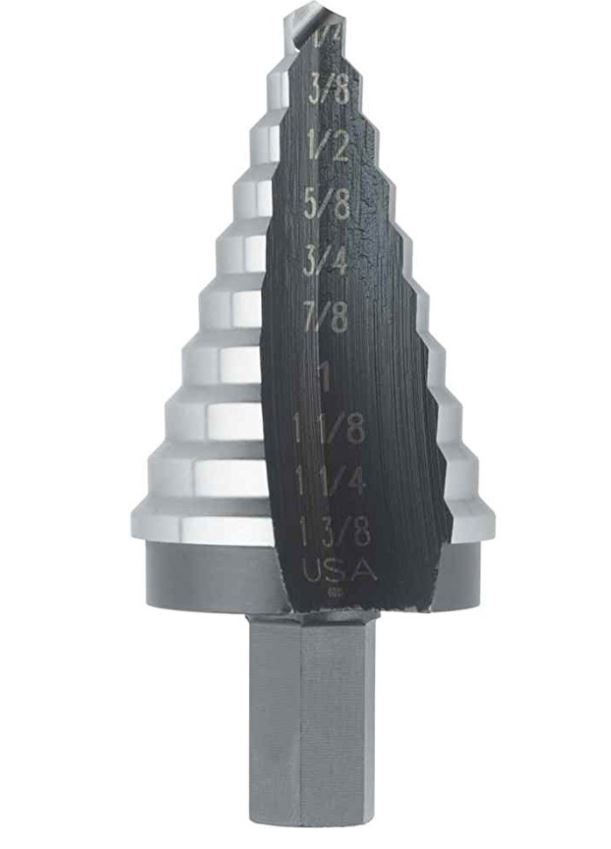

#5	1/4″ – 1-3/8″ (1/8″ steps)	12	7/16″	10235

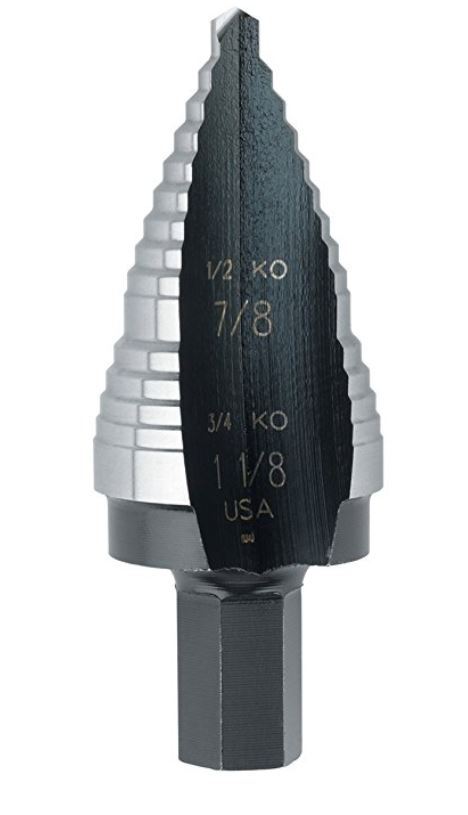

#9	7/8″ and 1-1/8″ (1/2″ and 3/4″ Knock-Out)	10	7/16″	10239
#10	1/2″ (single hole)	2	1/4″	10310
#11	7/8″ (single hole)	1	3/8″	10311ZR
#12	3/8″ (single hole)	1	1/4″	10312ZR

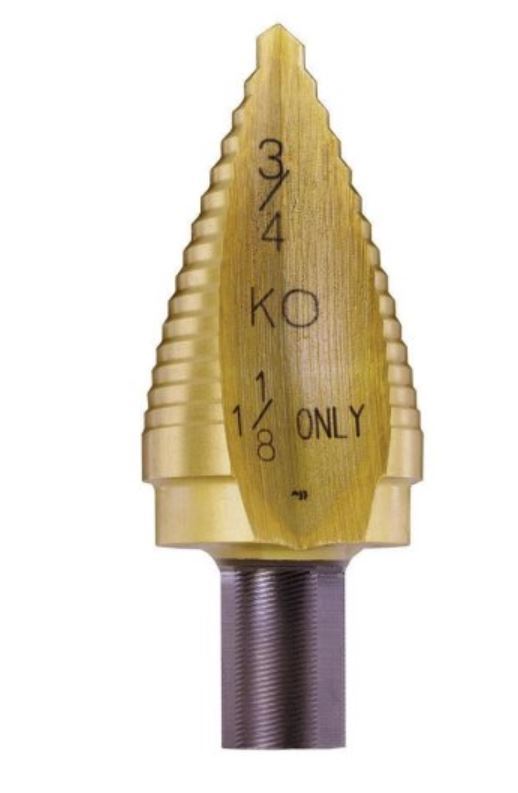

#13	1-1/8″ (single hole)	1	7/16″	10313ZR
#14	1-7/32″ (single hole)	1	7/16″	10314
#20	9/16″ – 1″ (hole enlarging)	8	7/16″	10220

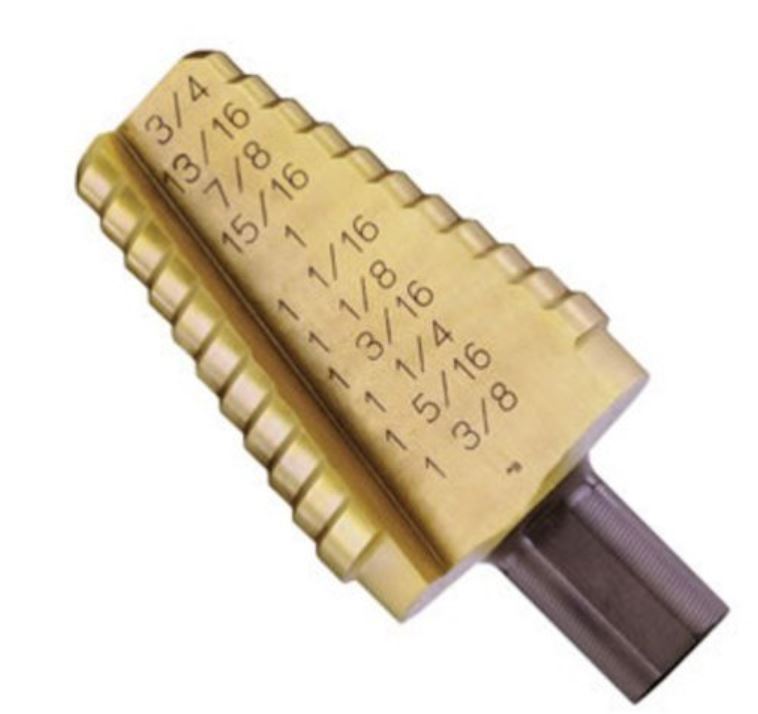

#21	13/16″ – 1-3/8″(hole enlarging)	10	7/16″	10221
#1M	4 mm – 12 mm (1 mm steps) 9 1/4″	9	1/4″	11101ZR
#2M	4 mm – 12 mm (2 mm steps) 5 1/4″	5	1/4″	11102

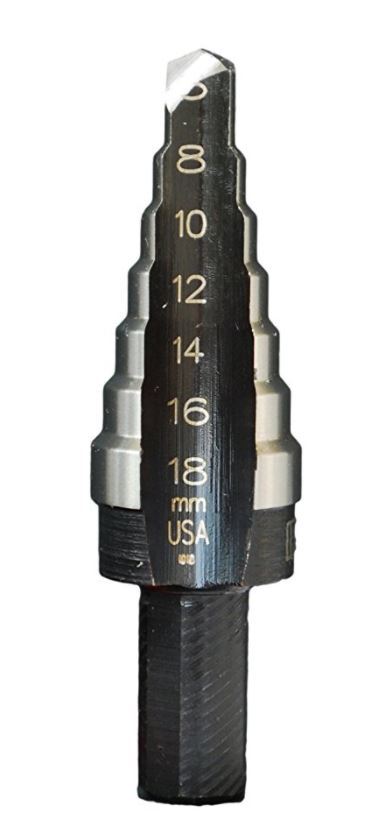

#3M	6 mm – 18 mm (2 mm steps) 7 3/8″	7	3/8″	11103

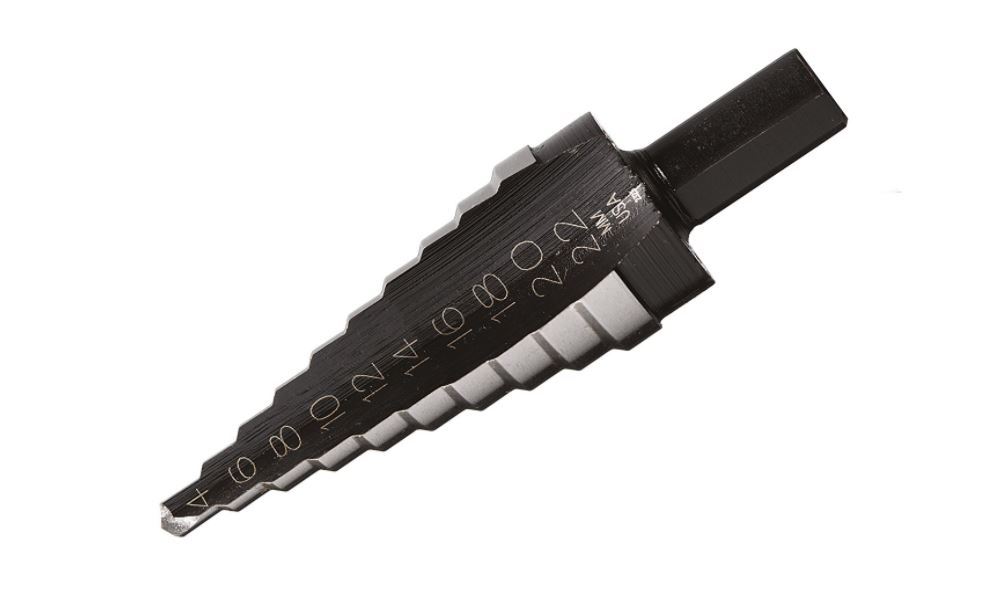

#4M	4 mm – 22 mm (2 mm steps) 10 3/8	10	3/8″	11104
#5M	5 mm – 35 mm (2-3 mm steps) 13 7	13	7/16″	11105ZR
#20	M 14 mm – 24 mm (hole enlarging)	6	7/16″	11580
#21	M 20 mm – 34 mm (hole enlarging)	8	7/16″	11581
PG2	9M 5 mm – 28.3 mm 10 7/16″ 11194	10	7/16″	11194
29 mm	5 mm – 29 mm 10 7/16″ 11195	10	7/16″	11195
#1T	1/8″ – 1/2″ (1/32″ steps)	13	1/4″	15101ZR
#2T	3/16″ – 1/2″ (1/16″ steps)	6	1/4″	15102ZR
#3T	1/4″ – 3/4″ (1/16″ steps)	9	3/8″	15103ZR
#4T	3/16″ – 7/8″ (1/16″ steps)	12	3/8″	15104
#13T	T 1-1/8″ (single hole)	16	7/16″	15313
#20T	T 9/16″ – 1″ (hole enlarging)	8	7/16″	15200
#21T	13/16″ – 1-3/8″ (hole enlarging)	10	7/16″	15221
